Serie DTR-1

Der Sensor-Drehzahlregler Dalap DTR-1 mit sehr hoher Regelgenauigkeit ist geeignet, die Geschwindigkeit von einphasigen spannungsgesteuerten Lüftermotoren zu regeln bzw. ein-/auszuschalten.
Produktname Model EAN Verfügbarkeit Preis ohne MWSt. Preis mit MWSt. In den Warenkorb
Dalap DTR -1 47525 4250622621718 10+ pcs. 49.01 € 56.85 €
shopping_cart

APPLICATIONS

The speed controller is used for ventilation systems for turning the fans on/off and speed control of single-phase voltage controlled fan motors. Several fans can be connected to one speed controller if their total current does not exceed the maximum controller current.

DESIGN

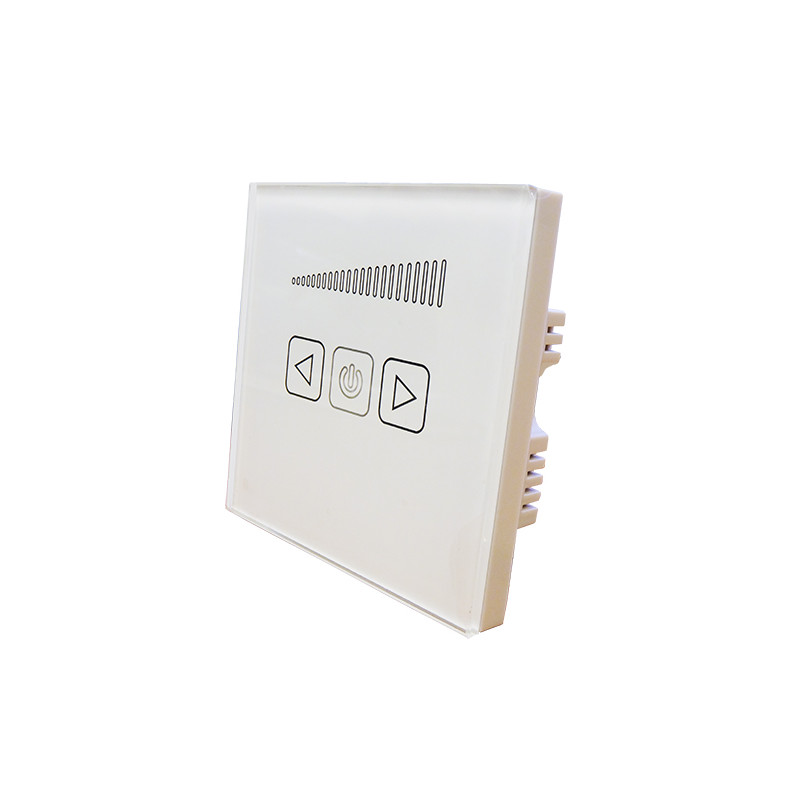

The casing is made of plastic and the sensor panel is made of hardened glass. The sensor panel has an ON/OFF button for speed control from minimum to maximum. The set speed level is displayed on the LED display. The speed controller has high control accuracy.

MOUNTING

The controller is designed for indoor mounting into standard round electric junction boxes.

CUSTOMS CODE: 85371098

DTR-1_MANUAL

User Manual

DTR-1_CZ

CZ_Prohlášení o shodě

DTR-1_SK

SK_Vyhlásenie o zhode

DTR-1_PL

PL_Deklaracja zgodności

DTR-1_HU

HU_Megfelöségi nyilatkozat

DTR-1_EN

EN_Declaration of conformity

DTR-1_DE

DE_Konformitaetserklaerung

Model

Frequency  (Hz)Voltage (V)Max WHumidity range (%)Maximum load current (A)Service life

Cable cross
section (mm2)
Temperature
range (°C)
Class of protection
DTR-1 50-60 220-240 200 5-80 1 100 000 switching operations 0,35-1 -10+45 IP30
ModelDimensions (mm)
HABCDefRLWeight (kg)Downloads
DTR-1 86 62 52 32 21 11 4 1,5 58 0,138  Detail
