Serie RAB O TURBO - Wandventilator-Axial

APPLICATIONS

Combined supply and exhaust ventilation system for various premises where high air capacity at relatively low system resistance is required. O-series fans can be used for direct air exhaust or pressurization in smoke ventilation systems. O-series fans are suitable for outdoor wall mounting.

DESIGN

The fan casing and the impeller are made of steel with a polymeric coating. The O-series fan terminal box is equipped with a cord for remote connection. The O-series fan is fitted with an external terminal box mounted on the fan casing.

MOTOR

The impellers are powered by two, four or six-pole, single or three phase asynchronous motors with an external rotor and built-in thermal overheating protection depending on the model. Ball bearings in the motor provide a long service life designed for at least 40 000 hours. Motor protection rating is IP 44.

SPEED CONTROL

Both smooth or step speed control are performed by means of a thyristor or autotransformer controller. Several fans can be connected to one controller if the total power and operating current do not exceed the rated controller values.

MOUNTING

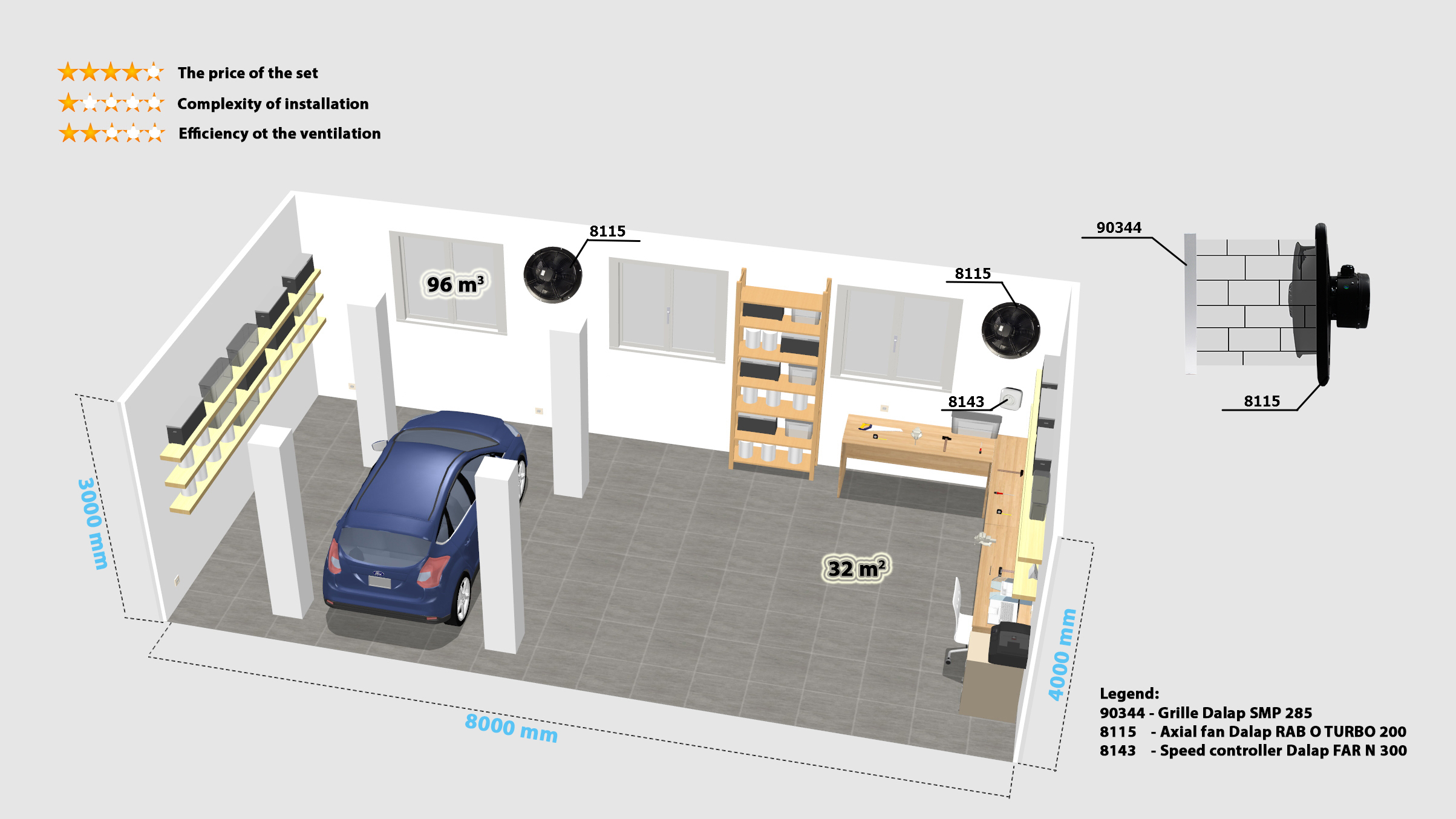

The fan is installed on a wall surface by means of a round mounting plate. The fan is installed in the duct by means of connecting flanges. The fan is powered through the external remote terminal box. Power supply and installation should be performed in compliance with the manual and wiring diagram on the terminal box.

CUSTOMS CODE: 84145925
