Serie RAB EX ATEX

Der Wandventilator Dalap RAB EX ATEX 350 mm in Umgebungen mit Explosionsgefahr hat gemäß ATEX-Richtlinie 2014/34 / EU-Kennzeichnung II 2G c IIB + H2 T4.

Produktname Model EAN Verfügbarkeit Preis ohne MWSt. Preis mit MWSt. In den Warenkorb
Dalap RAB EX ATEX 250 4 poles 3640 4250622627970 1970-01-01 1,064.43 € 1,234.74 €
shopping_cart
Dalap RAB EX ATEX 300 4 poles 3642 4250622627987 5 pcs. 1,092.87 € 1,267.73 €
shopping_cart
Dalap RAB EX ATEX 350 4 poles 3644 4250622627994 5 pcs. 1,138.76 € 1,320.96 €
shopping_cart
Dalap RAB EX ATEX 400 4 poles 3646 4250622628007 3 pcs. 1,203.88 € 1,396.50 €
shopping_cart
Dalap RAB EX ATEX 500 4 poles 3648 4250622628014 4 pcs. 1,493.70 € 1,732.69 €
shopping_cart
Dalap RAB EX ATEX/400V 250 4 poles 3641 4250622628021 4 pcs. 874.27 € 1,014.15 €
shopping_cart
Dalap RAB EX ATEX/400V 300 4 poles 3643 4250622628038 5 pcs. 901.58 € 1,045.83 €
shopping_cart
Dalap RAB EX ATEX/400V 350 4 poles 3645 4250622628045 1 pc. 931.11 € 1,080.09 €
shopping_cart
Dalap RAB EX ATEX/400V 400 4 poles 3647 4250622628052 1 pc. 967.18 € 1,121.93 €
shopping_cart
Dalap RAB EX ATEX/400V 500 4 poles 3649 4250622628069 1970-01-01 1,270.77 € 1,474.09 €
shopping_cart

APPLICATION

Explosion Proof Certified Axial fans to extract air and fumes directly outside through short ducting, wall or panel mounting, in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU. Suitable for applications in commercial and industrial environments where the risk of explosion is high and where  the surrounding atmosphere contains gas, vapours or highly inflammable steam. The whole product and not just the electrical parts, has been certified by CESI Institute with CESI n°3 ATEX 251 certificate.

Fan group II, cat. 2 for gases, construction safety C, max surface temp. T4 (135°C); Classified for zones 1 and 2. This approval has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements.

DESIGN

Steel plated body protected by an epoxy-based anticorrosive paint. The Impeller is made of VO reinforced conductive nylon.

MOTOR

- Exd-II B - T4, ball bearing class F insulation motor IP55 protected.

- Max temperature of extracted air: 40°C

- Reversibility: all models

- Reference Standards: EN 13463-1; EN 13463-5; EN 14986

MOUNTING

The fan is installed on the wall surface by means of a square mounting plate.


CUSTOMS CODE: 84145920

EX ATEX_EN

EN_Safety instruction

RAB EX ATEX - CESI

CESI Certificate

RAB EX ATEX

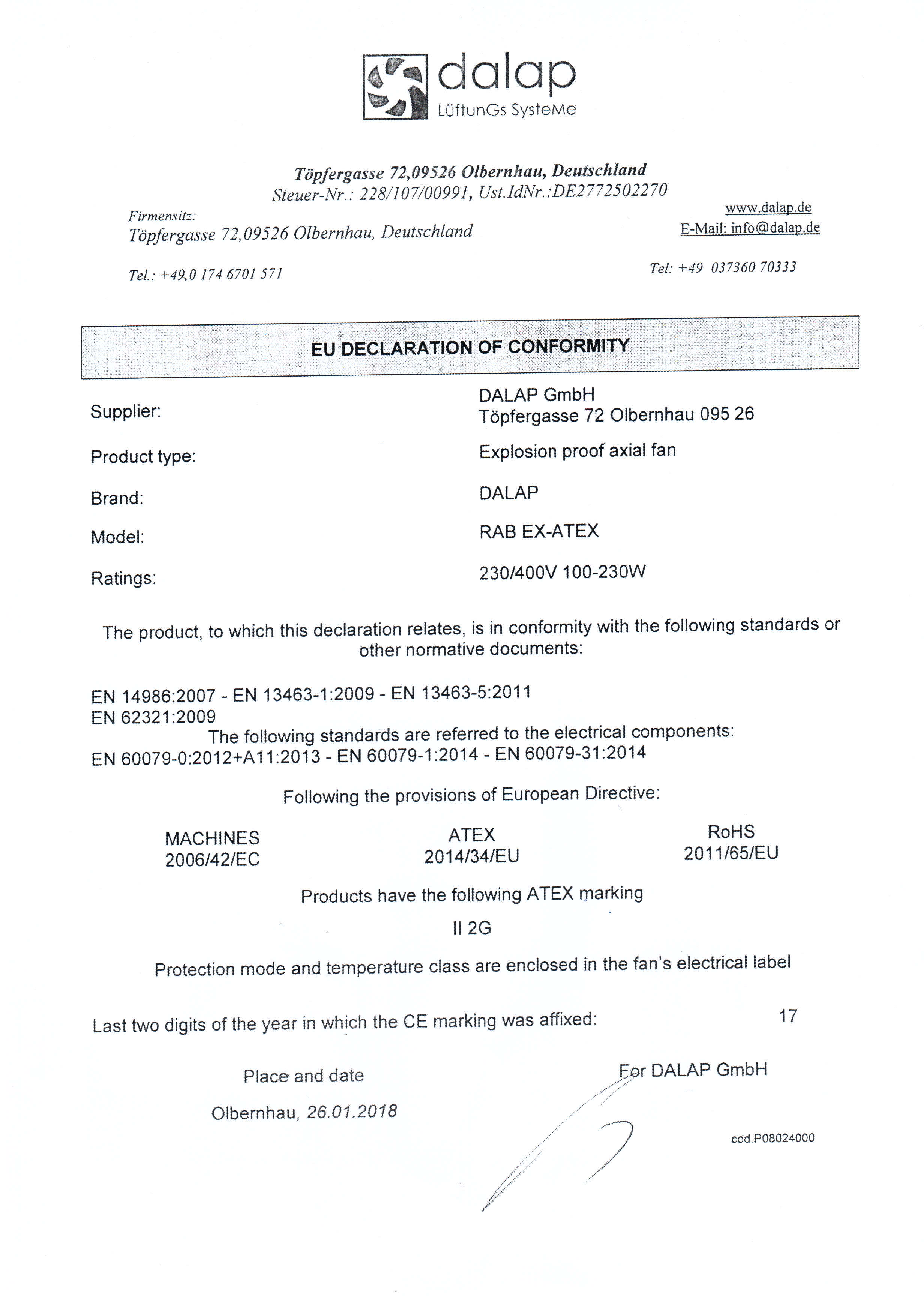

Declaration of conformity

EX ATEX_CZ

CZ_Bezpečnostní pokyny

EX ATEX_DE

DE_Sicherheitshinweise

EX ATEX_ES

ES_Instrucciones de seguridad

EX ATEX_FR

FR_Instructions de sécurité

EX ATEX_HU

HU_Biztonsági utasítások

EX ATEX_PL

PL_Instrukcje bezpieczeństwa

EX ATEX_SK

SK_Bezpečnostné pokyny

Model

Voltage (V) at 50 HzPower consumption (W)

Current (A)


230V  400V

r.p.m.

Maximum air capacity (m3/h)Sound pressure level at 2m (dB(A))Weight (kg)

Downloads
Dalap RAB EX ATEX 250 4 poles 230 120 0,7 - 1460 900 55 10,0 Detail
Dalap RAB EX ATEX 300 4 poles 230 140 0,75 - 1400 1500 59 10,0 Detail
Dalap RAB EX ATEX 350 4 poles 230 160 0,8 - 1350 2250 62 11,0 Detail
Dalap RAB EX ATEX 400 4 poles 230 180 0,85 - 1290 2900 65 12,0 Detail
Dalap RAB EX ATEX 500 4 poles 230 210 1,0 - 1200 4500 70 14,0 Detail
Dalap RAB EX ATEX/400V 250 4 poles 230/400 100 0,67 0,39 1460 900 55 9,0 Detail
Dalap RAB EX ATEX/400V 300 4 poles 230/400 125 0,69 0,40 1430 1500 59 9,0 Detail
Dalap RAB EX ATEX/400V 350 4 poles 230/400 150 0,72 0,42 1400 2250 63 10,0 Detail
Dalap RAB EX ATEX/400V 400 4 poles 230/400 180 0,74 0,43 1350 2900 66 11,0 Detail
Dalap RAB EX ATEX/400V 500 4 poles 230/400 230 0,78 0,45 1270 4500 72 13,0 Detail

ModelDimensions (mm)
ABCDEFGHDownload
Dalap RAB EX ATEX 250 4 poles 190 66 9 8 260 340 325 8,3 Detail
Dalap RAB EX ATEX 300 4 poles 190 75 9 10 312 390 375 8,3 Detail
Dalap RAB EX ATEX 350 4 poles 190 85 10 12 365 460 439 12,3 Detail
Dalap RAB EX ATEX 400 4 poles 190 85 10 12 415 510 490 12,3 Detail
Dalap RAB EX ATEX 500 4 poles 190 101 10 15 515 630 610 12,3 Detail
Dalap RAB EX ATEX/400V 250 4 poles 190 66 9 8 260 340 325 8,3 Detail
Dalap RAB EX ATEX/400V 300 4 poles 190 75 9 10 312 390 375 8,3 Detail
Dalap RAB EX ATEX/400V 350 4 poles 190 85 10 12 365 460 439 12,3 Detail
Dalap RAB EX ATEX/400V 400 4 poles 190 85 10 12 415 510 490 12,3 Detail
Dalap RAB EX ATEX/400V 500 4 poles 190 101 10 15 515 630 610 12,3 Detail
